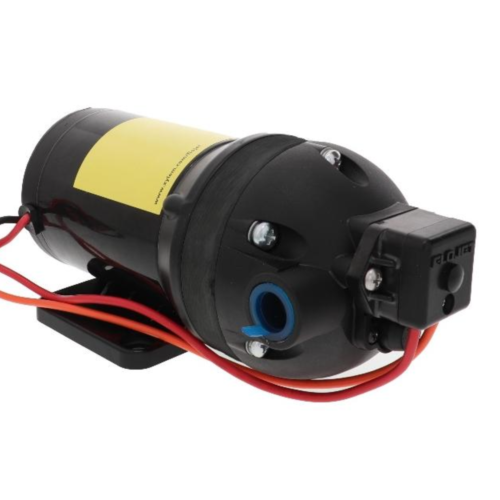

Flojet T202F-318S-1P – 24 Volt Pressure-Controlled Pump

Flojet T202F-318S-1P – 24 Volt Pressure-Controlled Pump

The Flojet T202F-318S-1P is an industrial diaphragm pump from the Triplex series, designed for professional fluid transfer, spraying and circulation applications requiring reliability, continuous operation and compact design. Powered by 24 V DC, it delivers a flow rate of up to 7.6 l/min and a maximum pressure of 4.1 bar (60 psi).

The three-chamber diaphragm design ensures smooth and quiet operation, while the permanent magnet motor with integrated thermal protection provides safe performance even under demanding operating conditions. The pump is self-priming up to 2.4 m and can run dry without damage, a key feature for industrial applications.

Wetted materials, including a Santoprene diaphragm and EPDM valves, offer good chemical compatibility with water and light industrial fluids. The robust construction, featuring a reinforced polypropylene pump head and an anti-vibration base, makes the T202F-318S-1P suitable for both fixed and mobile industrial installations.

Main features

• Three-chamber industrial diaphragm pump (Triplex)
• 24 V DC power supply with wide voltage range
• Flow rate up to 7.6 l/min and pressure up to 4.1 bar
• Self-priming up to 2.4 m and dry-run capability
• Santoprene diaphragm and EPDM valves
• Motor with integrated thermal protection

Applications

The Flojet T202F-318S-1P pump is suitable for industrial fluid transfer and distribution, spray systems, cooling, filtration, circulation and dosing applications where reliability, compact size and consistent performance are required.
